Key Takeaways:
- Generation matters: 3rd gen (2016–2023) and 4th gen (2024+) Tacomas use different mounting brackets, hood attachment points, and wiring, so a kit built for one will not bolt onto the other.
- Lighting Performance: Proper beam selection and accurate aiming improve peripheral visibility while reducing unnecessary glare.
- Installation Planning: Vehicle-specific mounting and careful wiring contribute to dependable operation and long-term durability.
- Buying Guidance: Choosing premium components that match your driving needs helps deliver reliable performance on and off the trail.
Every Trail Deserves Better Visibility.
Driving beyond paved roads often means dealing with narrow trails, changing terrain, and limited sightlines that factory lighting was never designed to handle. A well-planned lighting upgrade helps illuminate the areas beside the vehicle, making obstacles, wildlife, and trail markers easier to identify while maintaining awareness in low-light conditions.
OffRoadUSA.com is built for off-road enthusiasts who want reliable aftermarket upgrades backed by knowledgeable support. The team helps drivers find premium lighting solutions that align with their build goals while making it easier to choose components designed for their specific vehicle and driving style.
This guide breaks down Tacoma ditch lights, how such auxiliary lighting systems work, what changes between the 3rd gen (2016–2023) and 4th gen (2024+) Tacoma, step-by-step installation for each, and which premium options deserve consideration for your next upgrade.
What Are Tacoma Ditch Lights?
Additional forward-facing illumination can dramatically improve visibility along the outer edges of a trail where factory headlights provide limited coverage. By projecting light toward the vehicle's shoulders, these auxiliary lights help reveal rocks, branches, trail markers, and other hazards that are easy to miss at night or in poor weather.

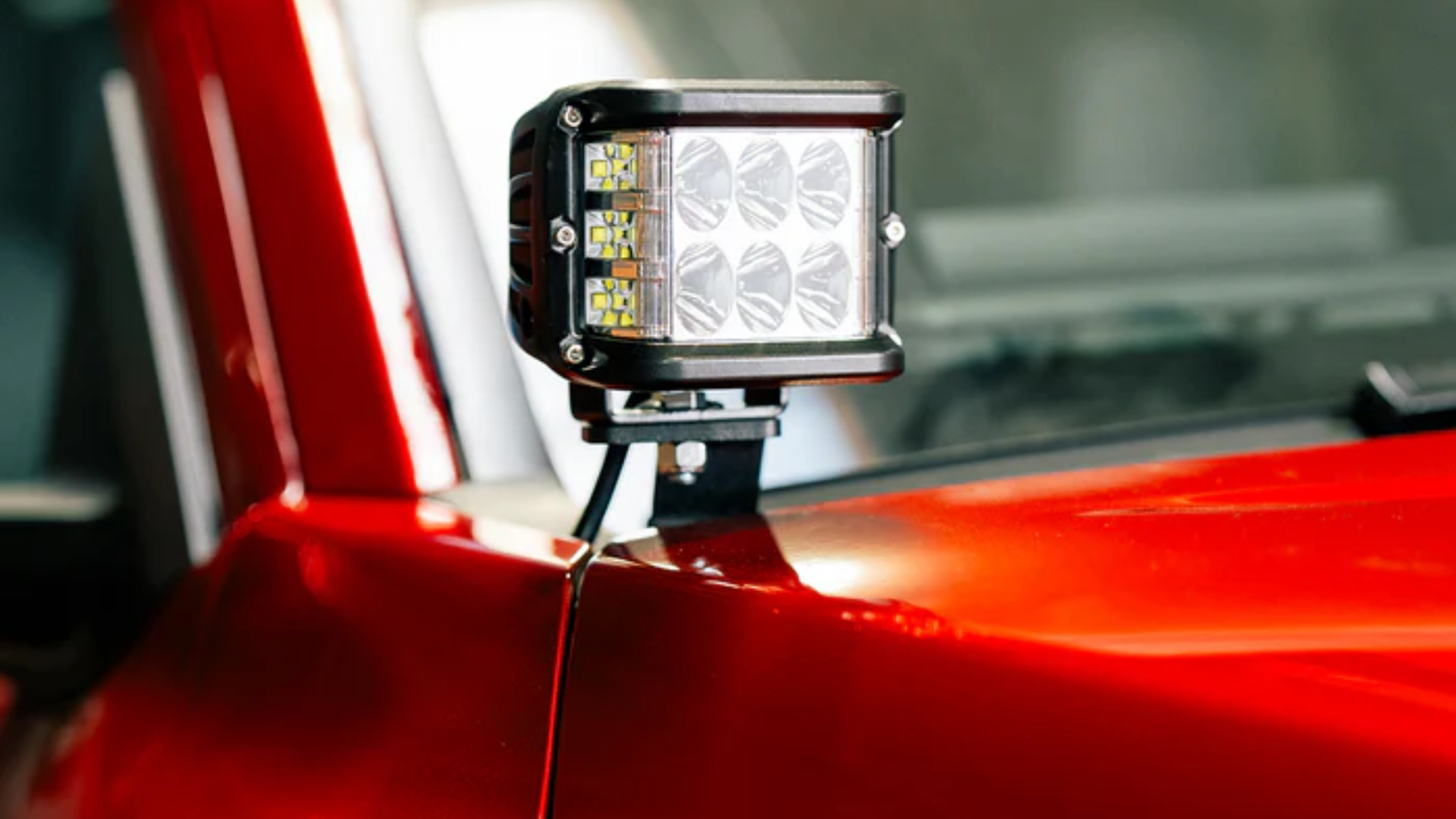

Mounted near the base of the windshield or hood, these lights complement the primary headlight pattern instead of replacing it. Many owners choose Tacoma off-road lights to improve peripheral visibility during trail driving, overlanding, and other low-light conditions. Proper aiming reduces glare while expanding peripheral awareness, allowing drivers to better identify obstacles before they become immediate hazards. The result is a more capable lighting setup that supports safer navigation during off-road travel, remote camping trips, and low-light conditions.
3rd Gen Tacoma (2016–2023) Ditch Lights
The 3rd gen Tacoma doesn't have a dedicated ditch light mounting point from the factory, so upgrades rely on A-pillar brackets that clamp to the factory windshield-frame bolts near the base of the A-pillar.
- Featured product: Morimoto 4Banger LED Ditch Light System Vehicle-specific A-pillar brackets (bracket code BAF028) designed for a modification-free, bolt-on fit using existing mounting points
- Available with Morimoto's 4Banger NCS or HXB LED pods in your choice of Spot, Combo, or SAE-compliant Wide beam patterns
- White or phosphor-converted yellow output; yellow is factory-tuned for genuine performance in rain, snow, or fog rather than a tinted lens over a white LED
- Copper DTP (direct thermal path) PCB for heat management and long-term reliability
- IP69K-rated weather sealing
- Intensity ranges from roughly 8,680 candela on the Wide Yellow beam up to 105,000 candela on the Spot White beam, with the Spot beam reaching up to 800 meters of throw
- Limited lifetime manufacturer warranty
How To Install 3rd Gen Tacoma Ditch Lights
- Prepare the mounting location. Open the hood and locate the factory bolts at the base of each A-pillar, just behind the headlights. Remove the factory hardware at each mounting point.
- Mount the brackets. Bolt the A-pillar brackets into place using the factory hardware, leaving the bolts slightly loose so the bracket can still pivot for aiming.
- Attach the LED pods. Secure each 4Banger pod to its bracket, angling it outward and slightly downward toward the road's shoulder.
- Route the wiring. Run the supplied harness or DT pigtails from each pod along the factory wiring channels, away from the exhaust, moving belts, and any sharp edges, back to the switched power harness.
- Connect power. Wire the harness to a switched 12V source (or use Morimoto's power harness with relay) and ground it to a clean chassis point.
- Aim and torque. With the truck parked facing a flat wall at night, turn on the lights and adjust each pod until the beam is angled outward without shining directly into oncoming traffic, then fully tighten the bracket bolts.
- Tidy up. Secure any slack wiring with zip ties or the included cable clips, and double-check that the harness won't rub against the hood hinge when it's opened and closed.
For additional Tacoma lighting ideas during a 3rd gen build, the 3 Must-Have 2024-26 Tacoma Lighting Upgrades from Baja Designs buyer's guide highlights complementary upgrades that integrate well with an auxiliary lighting system.
4th Gen Tacoma (2024+) Ditch Lights
The 4th gen Tacoma's redesigned hood includes dedicated factory mounting points for ditch dclights, so 2024+ kits bolt directly to the hood rather than clamping to the A-pillar — meaning 3rd gen brackets and 4th gen brackets are not interchangeable.
- Laser-cut, powder-coated brackets that mount directly to the factory hood attachment points — no drilling required
- Includes LED ditch light pods, a wiring harness, and the option to add a dedicated dash-mounted "ditch light" switch
- Brackets are adjustable and typically aimed at roughly a 45° angle away from the vehicle for the best combination of side coverage and minimal glare
- Compatible with most standard-mount LED pods, though it's designed around the included pods for the cleanest fitment
Featured Product: Diode Dynamics Stage Series Backlit Ditch Light Kit (2024–2026)
- Bolt-on, application-specific brackets built from thick-gauge stainless steel that resist corrosion better than mild-steel alternatives
- Mounts two Stage Series SS3 or SSC2 LED pods above the hood using factory mounting points, with a low-profile design that won't interfere with the hood opening or closing
- Patented TIR optics focus nearly all of the LED's output into the beam pattern instead of losing it to internal reflection or glare
- Amber backlighting built into each pod adds a secondary accent light in addition to the main beam, powered through the included harness
- Tested from -40°F to 185°F along with vibration, moisture intrusion, and corrosion testing to SAE standards
- Kit includes two SS3 or SSC2 pods, two ditch light brackets, two pod mounting brackets, a heavy-duty dual-output 4-pin wiring harness, mounting hardware, and an install guide
- Backed by an 8-year warranty
How To Install 4th Gen Tacoma Ditch Lights
- Prepare the mounting location. Open the hood and locate the factory ditch light mounting points on either side, near the hood hinges. Confirm hood clearance before finalizing bracket position, since later 4th gen trims can vary slightly in hood hardware.
- Mount the brackets. Bolt each stainless steel bracket to the factory mounting point using the supplied hardware — no drilling or cutting is needed.
- Attach the LED pods. Secure the SS3, SSC2, or included LED pod to each bracket and set it to roughly a 45° outward angle as a starting point.
- Route the wiring. Run the included 4-pin harness from each pod toward the factory fuse box or auxiliary switch bank, keeping it clear of the hood hinge, the intake, and any moving components — this is especially worth double-checking on TRD Pro and Trailhunter trims with additional underhood hardware.
- Connect power. Wire the harness to a switched circuit or the factory AUX switch bank if your trim supports it, and connect the backlight harness separately if you want the amber accent light tied to a different function (such as parking lights).
- Aim and torque. Turn the lights on at night, fine-tune the aim so the beam covers the road's shoulder without blinding oncoming traffic, then fully tighten the mounting hardware.
- Test hood clearance. Open and close the hood several times to confirm the low-profile brackets don't interfere with the hood or any underhood components.
Drivers comparing additional front lighting solutions may also find the Diode Dynamics Tacoma SS30 Stealth Lightbar Kit White Combo Buyer's Guide helpful when evaluating complementary lighting upgrades for their build.
Why Tacoma Ditch Light Brackets Matter
A quality mounting system has just as much impact on long-term performance as the lights themselves. Brackets that match the vehicle correctly help maintain consistent alignment, reduce unwanted vibration, and support dependable operation across rough trails, washboard roads, and daily driving conditions.
Poorly designed mounting hardware can shift over time, creating an uneven beam pattern or placing unnecessary stress on surrounding components. Stainless steel brackets, like those used in the 4th gen Diode Dynamics kit, resist corrosion better than mild-steel alternatives, while the 3rd gen Morimoto A-pillar brackets are engineered to use existing mounting points for a modification-free installation. Choosing brackets engineered for the intended application helps simplify installation while providing a stable foundation that keeps auxiliary lighting aimed where it is needed.
Choosing The Right Tacoma Ditch Light Kit
Selecting the best setup starts with matching the generation, beam pattern, output, and intended driving conditions to your vehicle's needs.
- 3rd gen (2016–2023): A-pillar-mounted kits like the Morimoto 4Banger, with beam pattern (Spot, Combo, or Wide) chosen based on whether long-range visibility or wide side coverage matters more for your driving.
- 4th gen (2024+): Hood-mounted kits like the Diode Dynamics Stage Series or the Cali Raised-style bracket kit, which bolt directly to factory hood points and typically include backlighting as a built-in accent feature.
Spot beams work well for long-distance visibility, while combo patterns provide balanced trail coverage for varied terrain. Drivers researching complementary front lighting upgrades can also review the Diode Dynamics Stage Series Backlit Ditch Light Kit 2010-2023 Toyota 4Runner Buyer's Guide before comparing premium lighting solutions across similar platforms.
Final Thoughts
Upgrading your lighting system is one of the most practical improvements for drivers who regularly explore trails or travel after dark. The right combination of quality components, proper mounting, and careful installation delivers dependable performance while improving visibility where factory lighting falls short— and confirming your exact Tacoma generation before ordering is the single easiest way to avoid a mismatched kit.
OffRoadUSA.com offers premium off-road parts from trusted manufacturers, backed by knowledgeable customer support, fast order processing, and an extensive selection organized by vehicle year, make, and model. Choosing verified, vehicle-specific components helps simplify installation and supports reliable performance for every adventure.
Frequently Asked Questions About Tacoma Ditch Lights: Complete Install & Best Brands Guide
Can ditch lights be used on public roads?
It depends on local laws. Many areas allow auxiliary lights only when covered or switched off while driving on public roads. Always check the regulations in your state or municipality before using them.
Do 3rd gen and 4th gen Tacoma ditch light kits use the same mounting hardware?
No. The 3rd gen (2016–2023) relies on A-pillar brackets that bolt to factory windshield-frame hardware, while the 4th gen (2024+) uses dedicated hood-mounted brackets built into the redesigned front end. Always confirm your model year before ordering.
What beam pattern is best for trail driving?
A combo beam is a popular choice because it provides both forward reach and wider side illumination, making it suitable for varied trail conditions.
How high should auxiliary lights be aimed?
They should be adjusted to improve side visibility without creating excessive glare. Proper alignment helps maximize usable light while reducing distraction for other drivers — most ditch lights are set at roughly a 45° outward angle as a starting point, then fine-tuned at night.
Do auxiliary lights place extra strain on the battery?
Most modern LED systems draw relatively little power, but every electrical accessory adds some load. Following the manufacturer's wiring recommendations helps maintain reliable performance.
Is a relay wiring harness necessary?
A relay harness is recommended for many installations because it provides safer power delivery and helps protect the factory electrical system.
Can I install auxiliary lighting without drilling?
Yes. Both the 3rd gen A-pillar-style kits and 4th gen hood-mounted kits featured in this guide are designed to bolt to existing factory mounting points without drilling or cutting.
What weather conditions benefit most from auxiliary lighting?
Low-light conditions such as rain, fog, snow, and dusty trails often benefit from additional sidelighting, provided the lights are aimed correctly.
How often should mounting hardware be inspected?
Checking fasteners after the initial installation and during routine vehicle maintenance helps identify loose hardware before it affects alignment or performance.
Are higher lumen ratings always better?
Not necessarily. Beam quality, optical design, and proper aiming often have a greater impact on usable visibility than lumen output alone.
How can I improve the lifespan of an auxiliary lighting system?
Regularly cleaning the lenses, inspecting electrical connections, and tightening mounting hardware can help maintain reliable operation over time.
